Mechanical Driving Glass Bioreactor
Over 25 years production experience
Your Reliable Mechanical Driving Glass Bioreactor Manufacturer in China: BLBIO
Bailun Biotechnology is a leading mechanical driving glass bioreactor manufacturer in China. Products cover all kinds of bioreactors in laboratory, pilot scale and industrial production, including fermenter, animal cell bioreactor, plant cell bioreactor, single-use bioreactor, liquid dispensing system and disposable reactor, etc. Can produce bio fermenter of 0.1L-1000KL volume and technical services, and provide intelligent and personalized comprehensive solutions for bioreactors process. Bailun has a large number of experienced fermentation process, biochemical equipment and chemical technical engineers, many famous experts and scholars as the company’s technical consultants, Bailun forever pursuits to create value for customers, and adhere to customer-centric is the core value of Bailun.

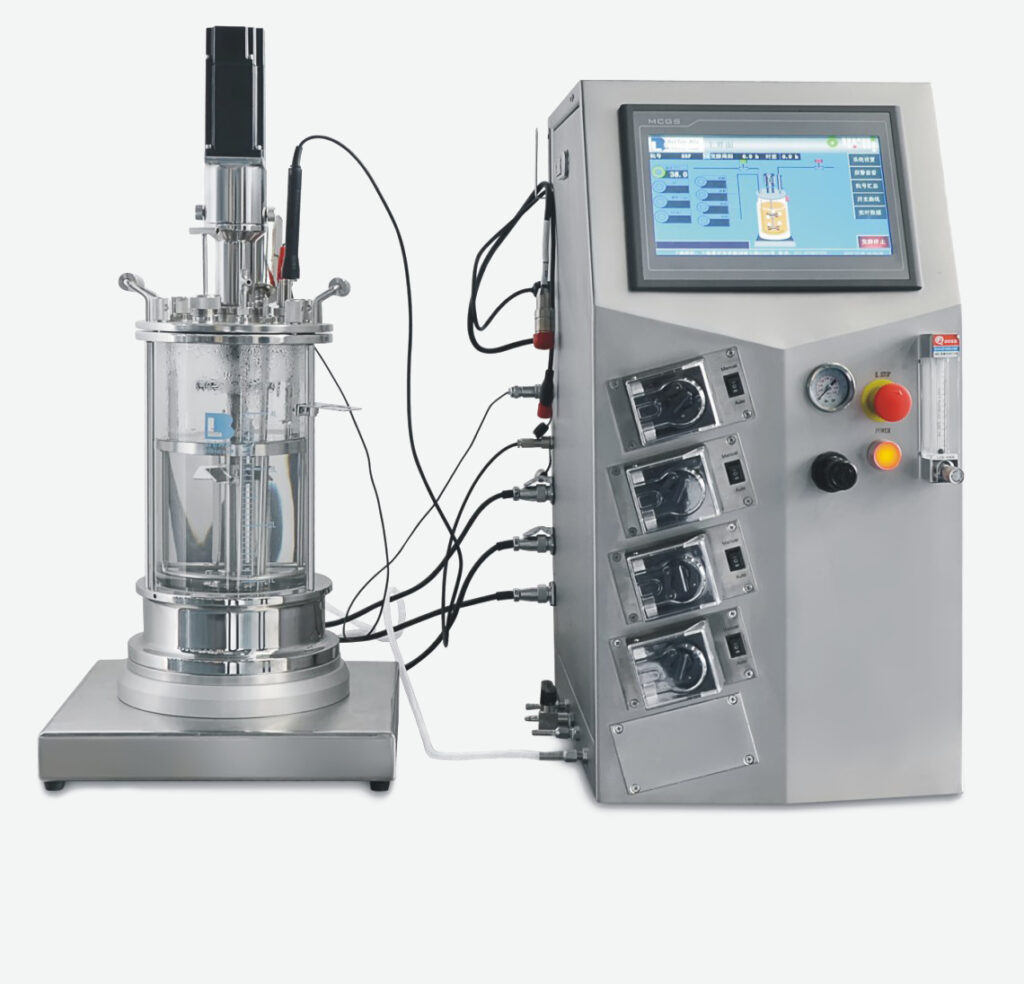

What is Mechanical Driving Glass Bioreactor GJ Type?
BLBIO-XGJ(X means tank total volume)series mechanical driving glass bioreactor is a set of laboratory glass fermentation equipment with powerful functions, which can meet various purposes of fermentation, such as batch, batch fed, and even animal cell culture.
The 10 inch color touch screen of mechanical driving glass bioreactor is used to display all measured values and control parameters, which greatly facilitates the user’s operation. Standard bioreactor 4 peristaltic pumps are installed on the front of the control box, which can replenish acid, alkali, defoamer gas and medium to the fermenter.
The Mechanical Driving Glass Bioreactor Has Simple Structure and is Easy to Operate
Various parameters in fermentation such as pH, DO, temperature and rotational speed can be monitored by the controller, and all data and control parameters can be transmitted to the controller or computer.
The structure of mechanical driving glass bioreactor is compact, and various components can be integrated on the fermentation system.The upper-driven direct-coupling mechanical stirring ,with simple structure and stable operation.
Know More About Mechanical Driving Glass Bioreactor
| Parameter | Description |
| Total volume | 0.2L,0.5L,1L,2L,3L,5L,10L,20L,30L,40L etc. |
| Working volume | 50%~70% |
| Tank | Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover |

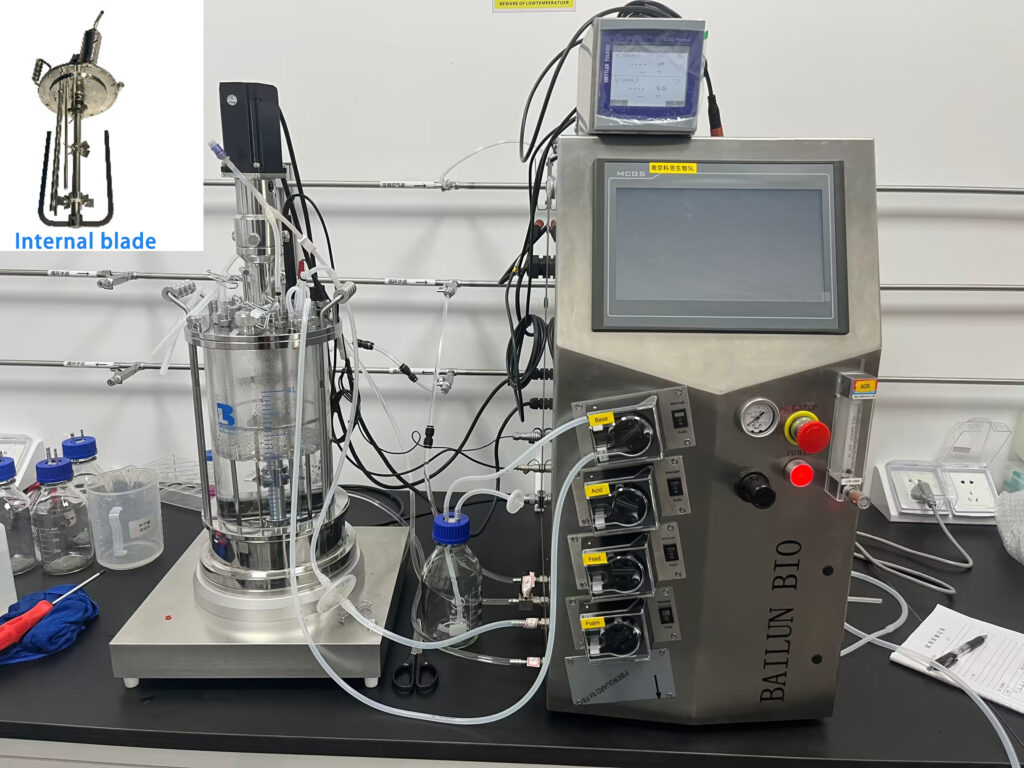

| Stirring system | Mechanical drive(GJ type) or Magnetic drive(GC type, bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable. Stir speed: 50~1000rpm/50-500rpm |
| Sterilization | Off-site sterilization (Autoclave) |
| Gas control | Control by rotor meter, air flow 2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | We can customize the parameters of mechanical driving glass bioreactor according to customer needs，such as Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc., |
The following picture shows the production workshop of Bailun.
