Magnetic Stirring Glass Bioreactor
Over 25 years production experience
Your Reliable Chinese Magnetic Stirring Glass Bioreactor Manufacturer : Bailun（BLBIO）
Bailun Biotechnology is a leading magnetic stirring glass bioreactor manufacturer in China. Products cover all types of bioreactors in laboratory, pilot scale and industrial production, including fermenter, animal cell bioreactor, plant cell bioreactor, single-use bioreactor, liquid dispensing system and disposable reactor, etc. Can produce bioreactor of 0.1L-1000KL volume and technical services, and provide intelligent and personalized comprehensive solutions for bioreactors process. Bailun has a large number of experienced fermentation process, biochemical equipment and chemical technical engineers, many famous experts and scholars as the company’s technical consultants, Bailun forever pursuits to create value for customers, and adhere to customer-centric is the core value of Bailun.

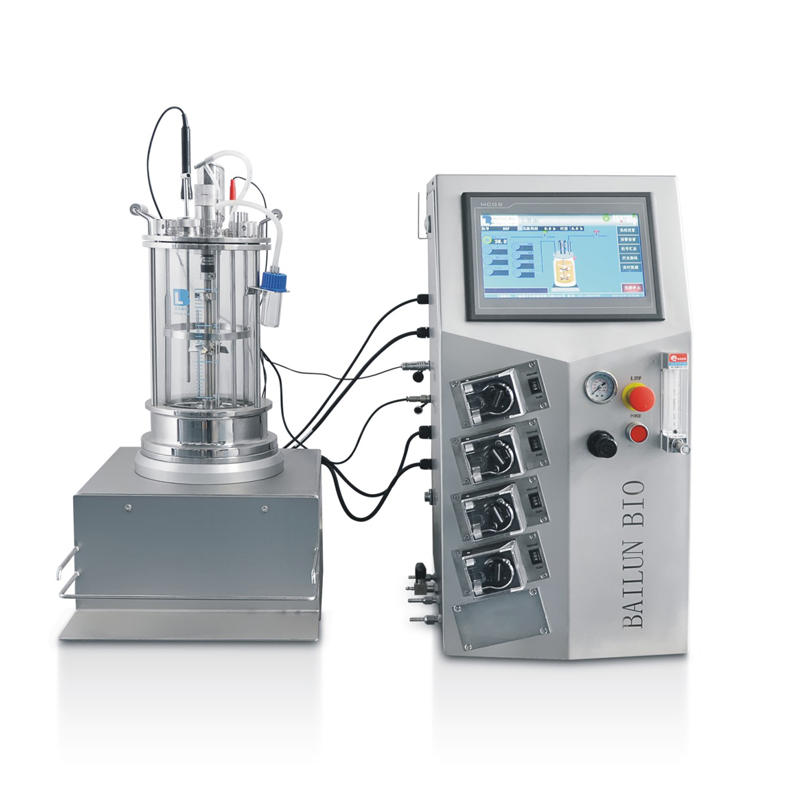

What is Magnetic Stirring Glass Bioreactor GC Type?
BLBIO-XGC (X means volume liters) series glass vessel magnetic stirring glass bioreactor, magnetic top or bottom drive, off-site sterilization, program auto control fermentation parameters, easy operation and clean, small and save place. Standard model control pH/DO/foam/temperature/agitation/gas. Control panel language EN/CN/RU.GC type is single layer glass wall with stainless steel 316L cover and stainless steel round jacket bottom, heating from the bottom. It is also a batch bioreactor. Magnetic stirring glass bioreactor can meet various purposes of fermentation, such as batch, batch fed, and for bacterial, yeast, microorganism, animal cell culture, algae etc.
Magnetic Stirring Glass Bioreactor Can Improve Your Production Efficiency
Magnetic Stirring glass bioreactor is more safety, shaft not cross the cover/bottom, more suitable for low agitation speed and mammalian cell culture requirements. All the internal parts of the tank are installed on the tank cover, which is very convenient for maintenance and cleaning; the design of separating the motor from the tank body greatly reduces the weight of the tank body. The magnetic stirring system adopts special permanent magnet materials, unique processing technology, never demagnetization.
Magnetic stirring Glass Bioreactor Have Multiple Parameters to Choose From
10 inch color touch screen of the magnetic stirring glass bioreactor displays all measured values and control parameters, usually each bioreactor has 4 peristaltic pumps for acid, alkali, defoamer, medium. Automatic control pH/DO/temperature/agitation/antifoam. Gas has manual control and auto control (mass flow meter) for choose. All fermentation data have history curvy and can export by U disk.
Magnetic stirring glass bioreactor accept customize and design.More optional: Remote control, Mass flow meter, gas O2/N2/CO2, Exhaust gas (O2/CO2) analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Variable speed pump, Printing, 15” color touch screen, Siemens screen, program open setting etc..
Know More About Magnetic Stirring Glass Bermenter
| Parameter | Description |
| Total volume | 0.2L,0.5L,1L,2L,3L,5L,10L,20L,30L,40L etc. |
| Working volume | 50%~70% |
| Tank | Single glass vessel with stainless steel bottom. Lid made by stainless steel 316L with ports, condenser on the cover |
| Stirring system | Mechanical stir(GJ type) or Magnetic stir(GC type, bottom/top drive), 3 six-blade paddle and 1 foam breaker, each paddle height adjustable. Stir speed: 50~1000rpm/50-500rpm |
| Sterilization | Off-site sterilization (Autoclave) |
| Gas control | Control by rotor meter, air flow 2vvm. |
| Feeding | Automatically feeding by peristaltic pump |
| Anti-foam control | Automatically add antifoamer by peristaltic pump |
| Temperature control | Auto-control, electric heating range water source add 5℃ to 70℃ |
| PH control | PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland. |
| DO control | 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen. |
| Sampling | Manual sampling |
| Control parameters | 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions |
| Optional configuration | We can customize the parameters of magnetic stirring glass bioreactor according to customer needs，such as Remote control, Mass flow meter(auto control gas), O2/N2/CO2, gas(CO2) exhaust analysis, Level sensor, Turbidity(OD) sensor, ORP sensor, weight system, Live cell sensor(Biomass), Printing, Siemens touch screen, etc., |
The following picture shows the production workshop of Bailun.
